SHILE BX-305 6.5” 40W Ceiling Speaker – Constant Voltage & 8Ω Versatility

6.5” 40W Ceiling Speaker – Constant Voltage & 8Ω (Model BX-305)

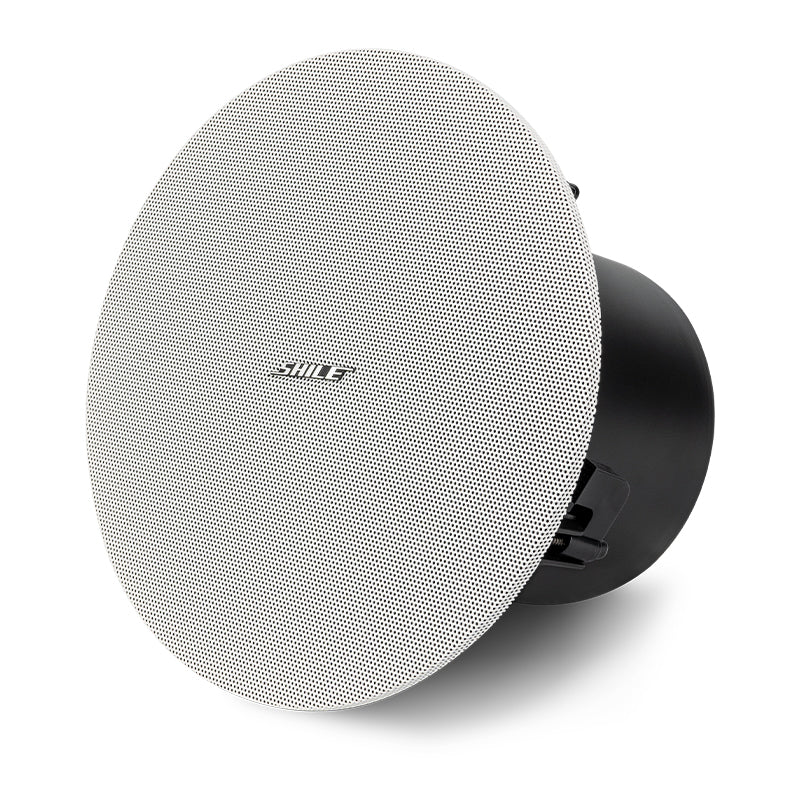

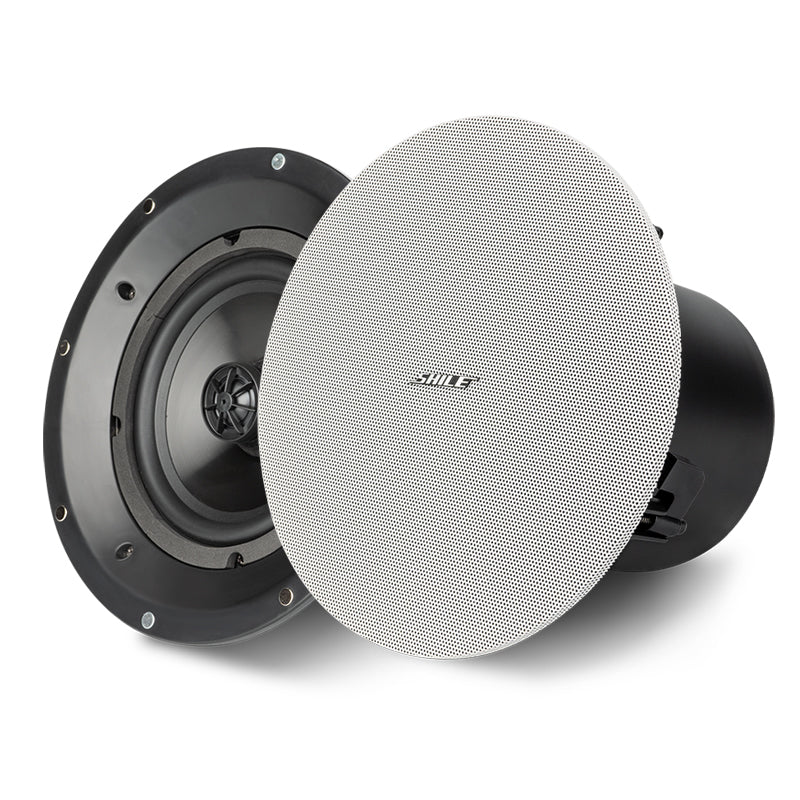

The BX-305 6.5-inch Ceiling Speaker is a powerful, reliable audio solution designed for commercial and residential sound installations. Built with a durable metal cabinet and a high-performance two-way speaker system, it delivers clear, balanced sound across a wide frequency range.

Supporting 70V, 100V, and 8Ω inputs, this speaker is ideal for background music and paging systems in offices, retail stores, restaurants, schools, and public spaces.

With selectable power taps and a robust 40W RMS output, the BX-305 provides flexible installation options while maintaining excellent audio clarity and efficiency.

Key Features

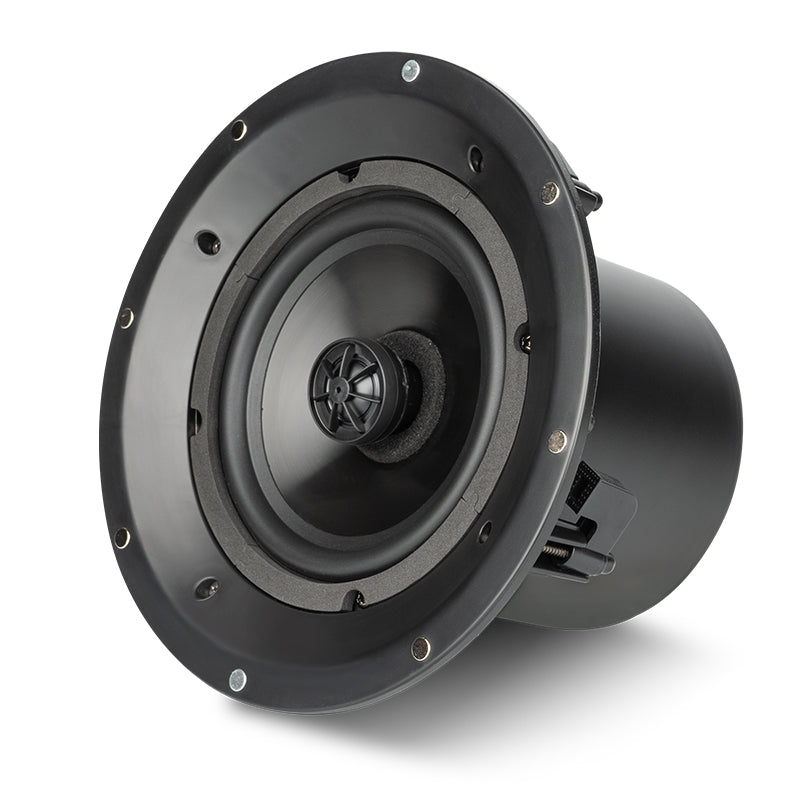

• 6.5” Full-Range Woofer + 0.75” Tweeter – Two-way design for clear highs and solid mid-bass

• 40W RMS / 80W Peak Power – Strong, consistent audio performance

• 70V / 100V / 8Ω Compatible – Suitable for constant voltage and standard audio systems

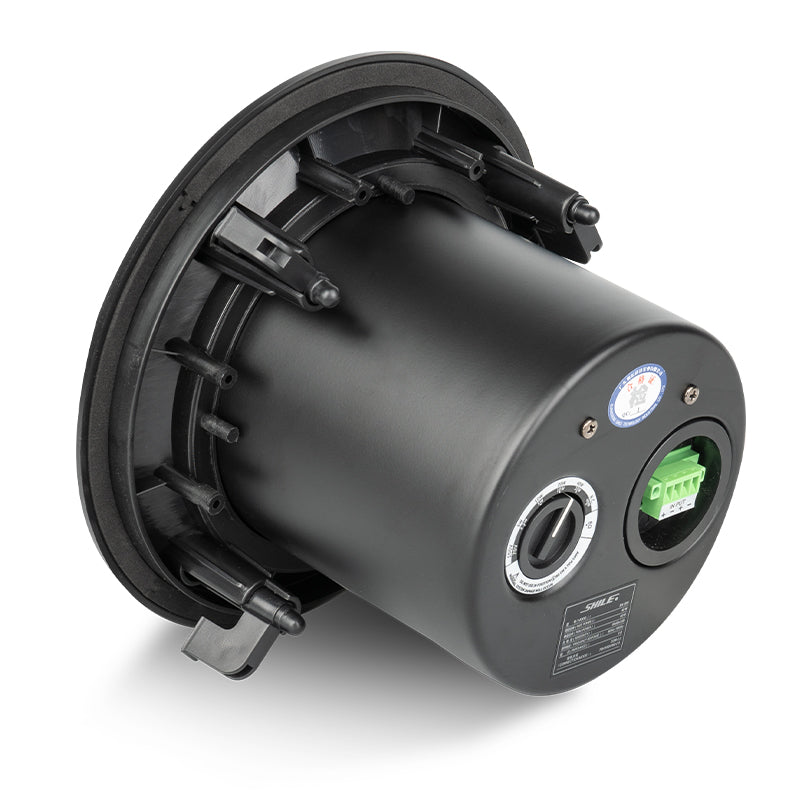

• Selectable Power Taps – Multiple wattage options for flexible system design

• Wide Frequency Response (80Hz–18kHz) – Clean and balanced sound

• Durable Metal Cabinet – Built for long-term commercial use

• Ceiling-Mount Design – Clean, discreet installation

Specifications

• Model: BX-305

• Brand: SHILE

• Channels: 1

• Speaker Type: Two-way ceiling speaker

• Woofer Size: 6.5 inch

• Tweeter Size: 0.75 inch

• Rated Power (8Ω): 40W

• Peak Power: 80W

• Power (100V): 5W / 10W / 20W / 40W

• Power (70V): 2.5W / 5W / 10W / 20W / 40W

• Frequency Response: 80Hz – 18kHz

• Sensitivity: 89dB ±3dB

• Cabinet Material: Metal

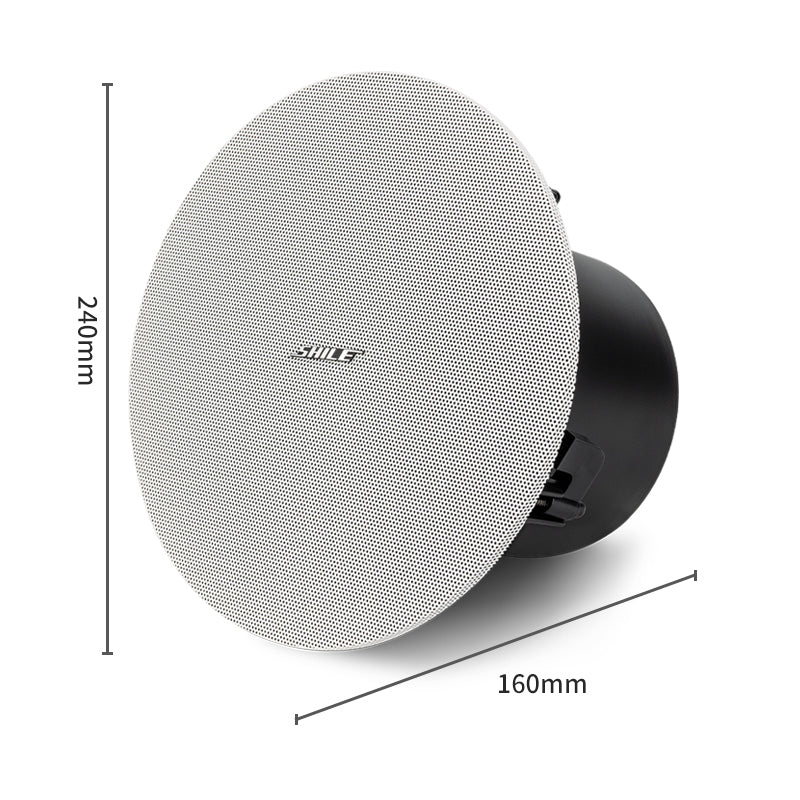

• Product Size: 240 × 160 mm

• Net Weight: 2 kg

Packaging

• Package Size: 29 × 29 × 20 cm

• Gross Weight: 2.5 kg

• Selling Unit: Single item
